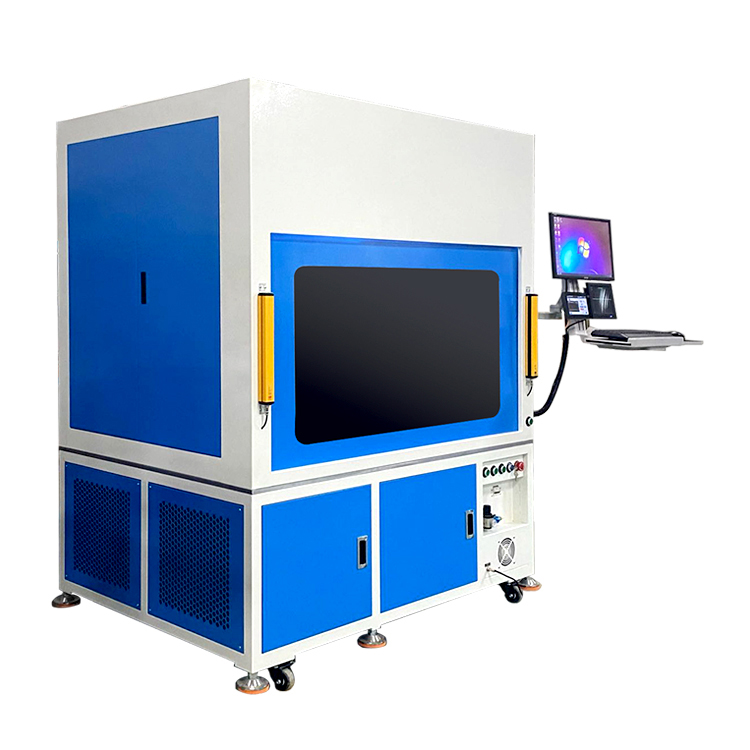

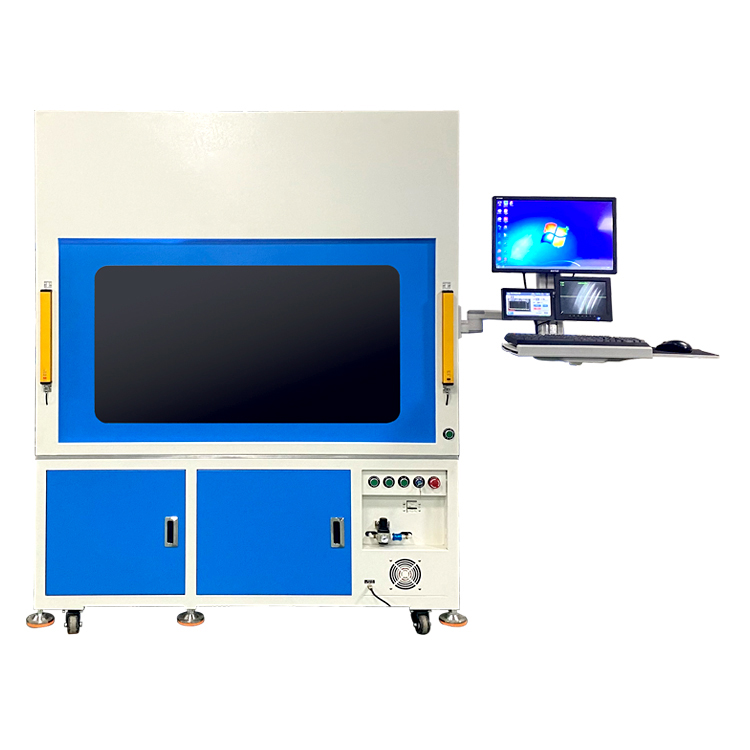

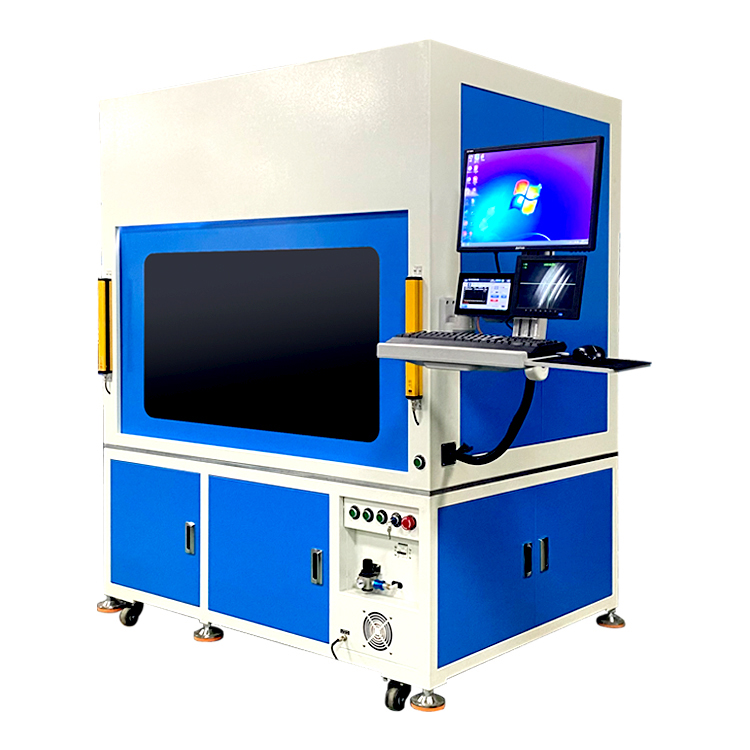

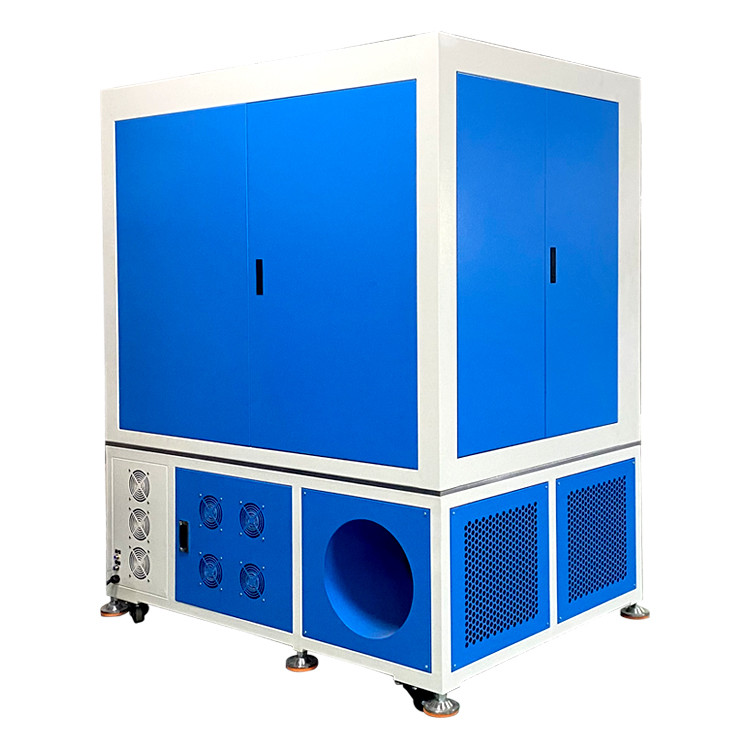

Bellows Laser Welding Machines

As a premier supplier of laser equipment, we specialize in bellows laser welding systems designed to meet the demanding requirements of industries such as aerospace, automotive, and HVAC. Our machines combine precision, efficiency, and adaptability to deliver flawless welds for complex bellows structures. Below, we outline the key features and competitive advantages of our advanced laser welding solutions.

Key Features

1. Ultra-High Precision Welding
   • Achieves micron-level accuracy (±0.03 mm) with advanced fiber laser technology and CNC motion control, ensuring seamless joints for thin-walled and intricate bellows geometries.
   • Minimal kerf width (<0.1 mm) and smooth weld seams eliminate post-processing steps like grinding or polishing.
2. Non-Contact Welding Technology
   • Eliminates mechanical stress on delicate bellows materials, preventing deformation or micro-cracks common in traditional welding methods.
   • Flexible fiber optic beam delivery enables welding in hard-to-reach areas, ideal for multi-layer or curved bellows designs.
3. Minimal Thermal Impact
   • Focused laser energy reduces the heat-affected zone (HAZ), preserving the mechanical properties and corrosion resistance of materials like stainless steel, titanium, and nickel alloys.
   • Adaptive laser parameters (power, pulse frequency) ensure consistent quality across varying material thicknesses (0.1–8 mm).
4. Material Versatility
   • Welds dissimilar metals (e.g., stainless steel to copper) and composite materials, critical for bellows used in thermal expansion joints or vacuum systems.
   • Handles coated or plated surfaces without damaging protective layers, ensuring long-term durability.
5. Smart Automation Integration
   • Compatible with robotic arms and automated loading systems for 24/7 production, reducing manual handling and human error.
   • Real-time monitoring and AI-driven path optimization compensate for material inconsistencies, ensuring weld uniformity.

Competitive Advantages

1. Superior Productivity
   • High-Speed Welding: Processes materials at speeds exceeding 20 m/min, significantly faster than TIG or MIG methods, ideal for high-volume bellows manufacturing.
   • Continuous Operation: Automated workflows enable uninterrupted production cycles, maximizing throughput.
2. Exceptional Weld Quality
   • Produces airtight, leak-proof seals critical for bellows in pressure-sensitive applications (e.g., hydraulic systems, exhaust components).
   • Burr-free, uniform seams eliminate the need for post-weld finishing, reducing labor costs and cycle times.
3. Cost Efficiency
   • Reduced Material Waste: Intelligent nesting software optimizes material layouts, cutting scrap rates by up to 20%.
   • Low Maintenance: Fiber laser sources (>100,000 hours lifespan) and enclosed designs minimize downtime and operational costs.
4. Flexibility for Complex Designs
   • Accommodates irregular shapes, tight radii, and multi-layer bellows with precision, supporting customization for niche applications.
   • Rapid reprogramming for design changes accelerates prototyping and small-batch production.
5. Eco-Friendly and Safe
   • Energy-efficient fiber lasers reduce power consumption by 30% compared to CO₂ lasers.
   • Fully enclosed chambers with fume extraction systems ensure compliance with workplace safety and environmental regulations.

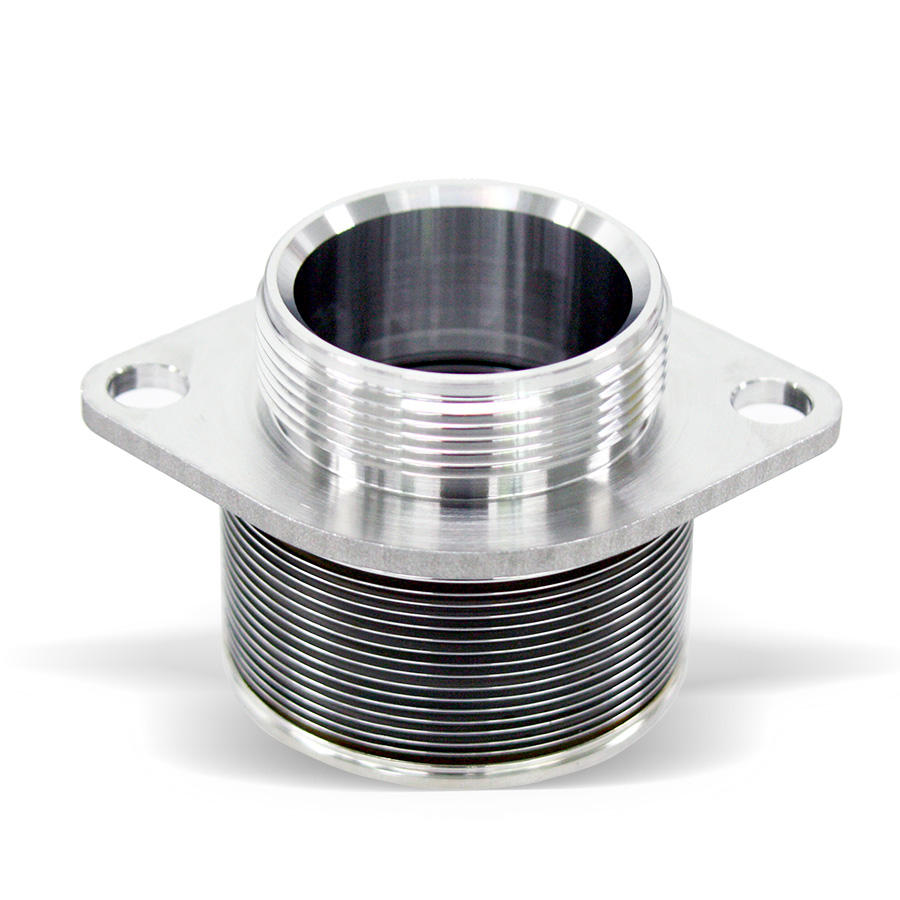

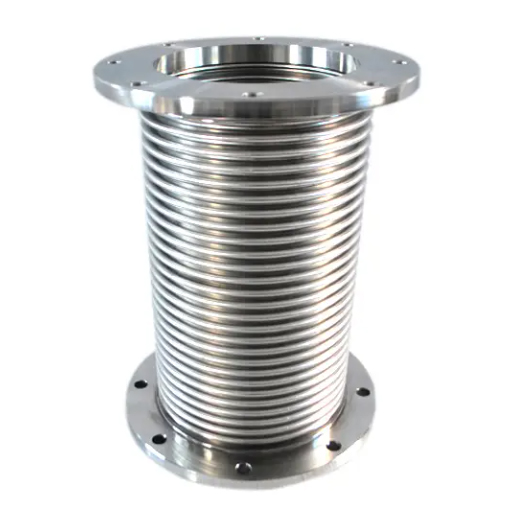

Applications in Bellows Manufacturing

• Aerospace Bellows: Precision welding of thin-walled, high-strength alloys for fuel and hydraulic systems.

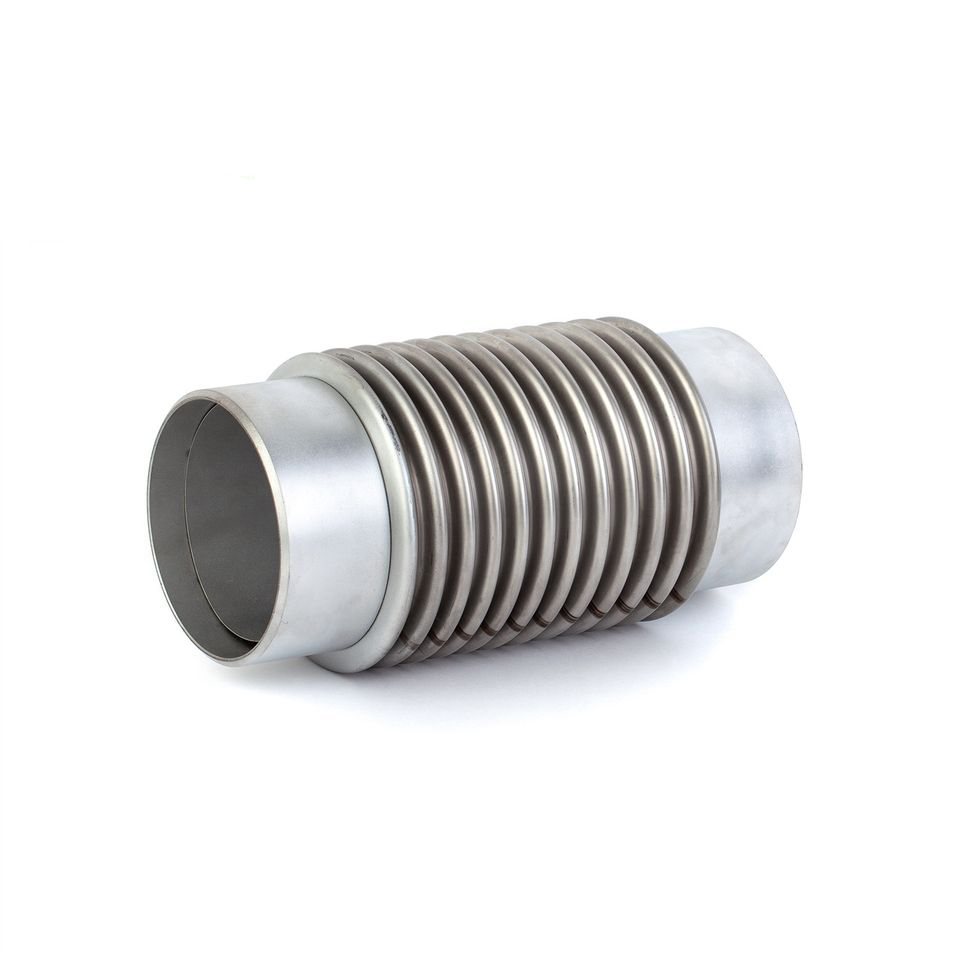

• Automotive Exhaust Systems: Durable, corrosion-resistant welds for thermal expansion joints.
• HVAC Ducting: Airtight seals for flexible duct connectors in heating and cooling systems.

Why Choose Our Bellows Laser Welding Systems?

Our machines empower manufacturers with unmatched precision, scalable automation, and cost-effective production—essential for meeting the rigorous standards of industries reliant on high-performance bellows. By integrating advanced laser technology with intelligent control systems, we deliver solutions that enhance weld integrity, reduce waste, and accelerate time-to-market.

Contact us today to discover how our laser welding systems can elevate your bellows manufacturing capabilities!
