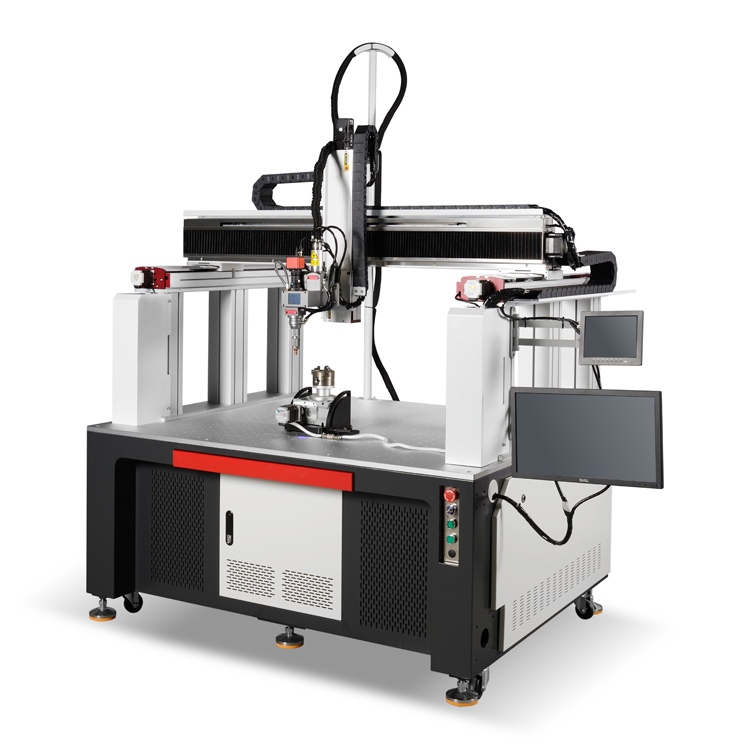

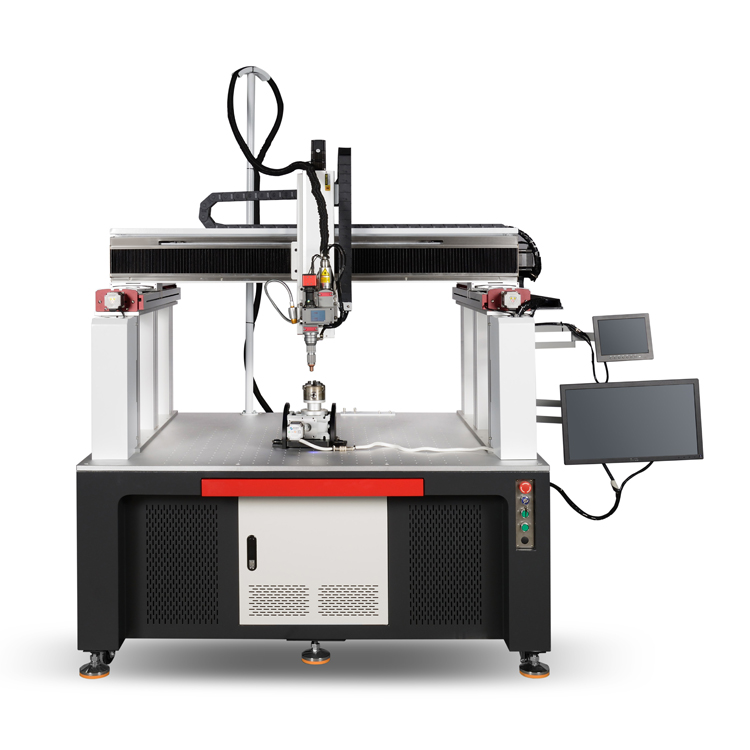

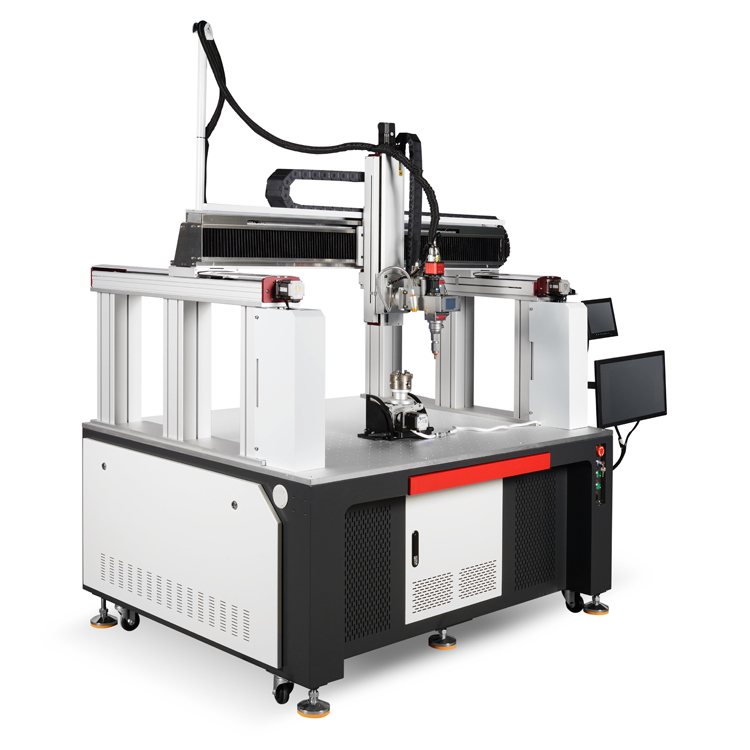

Gantry-Type Automatic Laser Welding Machines

As a leading laser equipment supplier, we specialize in gantry-type automatic laser welding systems, designed to deliver precision, efficiency, and scalability for high-demand industrial applications. Below, we outline the key features, competitive advantages, and primary applications of these advanced systems, tailored to meet the needs of modern manufacturing.

Key Features

1. Large-Format Worktable
   • Accommodates diverse product sizes and configurations with a flexible, modular design. Multiple fixtures can be installed simultaneously, enabling seamless transitions between different welding tasks.
2. Non-Contact, Low-Thermal-Impact Welding
   • Minimizes heat-affected zones (HAZ) and deformation, preserving material integrity and extending component lifespan. A cooling medium purification system further enhances process cleanliness and reliability.
3. High-Precision Welding Performance
   • Delivers narrow weld seams, deep penetration, and minimal taper for superior joint strength. Smooth, aesthetically pleasing weld surfaces eliminate post-processing steps like grinding or polishing.
4. Advanced Vision and Control Systems
   • Equipped with a high-resolution coaxial CCD vision system and linear light focusing technology, enabling precise alignment and simplified programming for complex welding paths.
   • PC-based control with user-friendly software ensures intuitive operation and rapid parameter adjustments.
5. Robust Structural Design
   • The gantry framework provides stability and durability, ideal for heavy-duty industrial environments. Compact and ergonomic, it maximizes workspace efficiency.

Competitive Advantages

1. Enhanced Flexibility and Scalability
   • Adaptable to both small-batch and mass production, with quick fixture changes and programmable workflows. Ideal for industries requiring rapid product iterations.
2. Superior Weld Quality
   • Produces airtight, high-strength joints critical for applications like battery sealing and structural components. Consistent precision (±0.03 mm) ensures uniformity across production batches.
3. High Efficiency and Cost Savings
   • Reduces labor costs through automation, with 24/7 operation capabilities. Minimal material waste and energy-efficient laser sources lower overall production expenses.
4. Eco-Friendly Operation
   • Zero-pollution processing eliminates fumes and debris, aligning with stringent environmental and workplace safety standards.
5. Low Maintenance and Longevity
   • Durable components and modular design simplify maintenance, while high-performance lasers (100,000+ hours lifespan) ensure long-term reliability.

Primary Applications

1. New Energy Lithium Battery Manufacturing
   • Electrode Welding: Precision joining of battery tabs (e.g., nickel strips, terminals) for electric vehicle (EV) and energy storage systems.
   • Battery Pack Assembly: Sealing of explosion-proof valves, busbars, and polymer battery housings1.
2. Automotive and Aerospace
   • Welding lightweight alloy components, such as EV battery trays and structural panels, with high-strength, corrosion-resistant seams.
3. Electronics and Consumer Goods
   • Micro-welding of heat-sensitive components, including connectors, sensors, and housings for consumer electronics.
4. Industrial Equipment
   • Fabrication of large-format components, such as heat exchangers, machinery frames, and HVAC systems.

Why Choose Our Gantry-Type Laser Welding Systems?

Our machines empower manufacturers to achieve unrivaled precision, operational efficiency, and sustainable production—essential for industries like EV battery manufacturing and advanced electronics. By integrating cutting-edge automation with robust engineering, we deliver solutions that drive innovation and reduce time-to-market.

Contact us today to explore how our gantry-type laser welding systems can optimize your production line!
